本讲是Android Camera性能分析专题的第31讲，我们介绍添加Stream FPS统计图和Trace，包括如下内容：
- 添加Stream FPS Histogram
- 添加Stream FPS Trace
| 资源 | 描述 |
|---|---|
| 在线课程 | 极客笔记在线课程 |
| 知识星球 | 星球名称：深入浅出Android Camera 星球ID: 17296815 |
| 极客笔记圈 |
添加Stream FPS Histogram

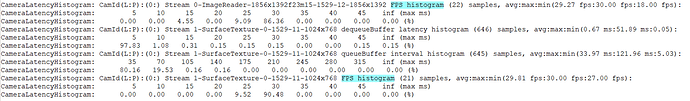

代码见视频讲解，运行效果如下：
添加Stream FPS Trace

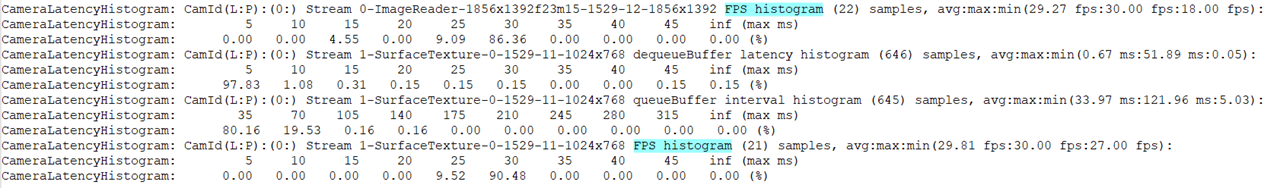

代码见视频讲解，运行效果如下:
代码修改点
diff --git a/Android13/libcameraservice/device3/Camera3OutputStream.cpp b/Android13/libcameraservice/device3/Camera3OutputStream.cpp
index 204947c..d7ab76c 100644
--- a/Android13/libcameraservice/device3/Camera3OutputStream.cpp
+++ b/Android13/libcameraservice/device3/Camera3OutputStream.cpp
@@ -73,6 +73,7 @@ Camera3OutputStream::Camera3OutputStream(int id,
mDequeueBufferLatency(kDequeueLatencyBinSize),
#ifdef Deepinout
mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),
+ mStreamFpsHistogram(kFpsBinSize),
#endif
mIPCTransport(transport) {
@@ -109,6 +110,7 @@ Camera3OutputStream::Camera3OutputStream(int id,
mDequeueBufferLatency(kDequeueLatencyBinSize),
#ifdef Deepinout
mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),
-
mStreamFpsHistogram(kFpsBinSize),
#endif
mIPCTransport(transport) {
@@ -152,6 +154,7 @@ Camera3OutputStream::Camera3OutputStream(int id,
mDequeueBufferLatency(kDequeueLatencyBinSize),
#ifdef Deepinout
mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),
-
mStreamFpsHistogram(kFpsBinSize),
#endif
mIPCTransport(transport) {
// Deferred consumer only support preview surface format now.
@@ -203,6 +206,7 @@ Camera3OutputStream::Camera3OutputStream(int id, camera_stream_type_t type,
mDequeueBufferLatency(kDequeueLatencyBinSize),
#ifdef Deepinout
mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),
-
mStreamFpsHistogram(kFpsBinSize),
#endif
mIPCTransport(transport) {
@@ -334,6 +338,23 @@ status_t Camera3OutputStream::returnBufferLocked(
ATRACE_ASYNC_END(traceLog, mId);
}
mLastQueueBufferTime = currentQueueBufferTime;
+
-
// Add for stream FPS
-
if (mLastSecTimestamp == 0) {
-
mLastSecTimestamp = timestamp;
-
mLastFrameCount = mFrameCount;
-
}
-
if ((timestamp - mLastSecTimestamp) >= 1000 * 1000000) {
-
int32_t curFrameCount = (int32_t) (mFrameCount - mLastFrameCount);
-
nsecs_t timestampInterval = timestamp - mLastSecTimestamp;
-
char fpsTraceTag[48];
-
snprintf(fpsTraceTag, sizeof(fpsTraceTag), "Stream %d: FPS\n", mId);
-
float streamFps = 1000 / ((timestampInterval / 1000000) / curFrameCount);
-
ATRACE_INT(fpsTraceTag, (int32_t)streamFps);
-
mLastSecTimestamp = timestamp;
-
mLastFrameCount = mFrameCount;
-
mStreamFpsHistogram.addFps(streamFps);
-
}
#endif
return OK;
@@ -547,6 +568,8 @@ void Camera3OutputStream::dump(int fd, const Vector<String16> &args) const {
#ifdef Deepinout
mQueueBufferIntervalHistogram.dump(fd,
" QueueBufferInterval histogram:");
-
mStreamFpsHistogram.dump(fd,
-
" Stream FPS histogram:");
#endif
}
@@ -1060,6 +1083,15 @@ status_t Camera3OutputStream::disconnectLocked() {
camera_stream::width,
camera_stream::height);
mQueueBufferIntervalHistogram.reset();
+
- mStreamFpsHistogram.logFps("CamId(L:P):(%s:%s) Stream %d-%s-%dx%d FPS histogram",
- mLogicalCameraId.string(),
- getPhysicalCameraId().string(),
- mId,
- mConsumerName.string(),
- camera_stream::width,
- camera_stream::height);
- mStreamFpsHistogram.reset();
#endif
mDequeueBufferLatency.reset();
return OK;
diff --git a/Android13/libcameraservice/device3/Camera3OutputStream.h b/Android13/libcameraservice/device3/Camera3OutputStream.h
index 05831ec…65d8292 100644
— a/Android13/libcameraservice/device3/Camera3OutputStream.h
+++ b/Android13/libcameraservice/device3/Camera3OutputStream.h
@@ -412,6 +412,12 @@ class Camera3OutputStream :
nsecs_t mLastQueueBufferTime = 0;
static const int32_t kQueueBufferIntervalBinSize = 35; // in ms
CameraLatencyHistogram mQueueBufferIntervalHistogram;
- // Add for stream FPS
- nsecs_t mLastSecTimestamp = 0;
- uint32_t mLastFrameCount;
- static const int32_t kFpsBinSize = 5; // in fps
- CameraLatencyHistogram mStreamFpsHistogram;
#endif
IPCTransport mIPCTransport = IPCTransport::INVALID;
diff --git a/Android13/libcameraservice/utils/LatencyHistogram.cpp b/Android13/libcameraservice/utils/LatencyHistogram.cpp
index a48ada7…f289ce6 100644
— a/Android13/libcameraservice/utils/LatencyHistogram.cpp
+++ b/Android13/libcameraservice/utils/LatencyHistogram.cpp
@@ -137,4 +137,53 @@ void CameraLatencyHistogram::formatHistogramText(
lineBinCounts.append(" (%)");
}
+#ifdef Deepinout
+void CameraLatencyHistogram::addFps(float fps) {
- int32_t binIndex = floor(fps / mBinSizeMs) - 1;
- if (binIndex < 0) {
-
binIndex = 0;
- } else if (binIndex >= mBinCount) {
-
binIndex = mBinCount-1;
- }
- mBins[binIndex]++;
- mTotalCount++;
+#ifdef Deepinout
- mTotalFps += fps;
- if (mMaxFps == 0 || mMaxFps < fps) {
-
mMaxFps = fps;
- }
- if (mMinFps ==0 || mMinFps > fps) {
-
mMinFps = fps;
- }
+#endif
+}
+void CameraLatencyHistogram::logFps(const char* fmt, …) {
- if (mTotalCount == 0) {
-
return;
- }
- va_list args;
- va_start(args, fmt);
- String8 histogramName = String8::formatV(fmt, args);
- ALOGI("%s (%" PRId64 ") samples, avg:max:min(%.2f fps:%.2f fps:%.2f fps):",
- histogramName.string(),
- mTotalCount,
- mTotalFps / mTotalCount,
- mMaxFps,
- mMinFps);
- va_end(args);
- String8 lineBins, lineBinCounts;
- formatHistogramText(lineBins, lineBinCounts);
- ALOGI("%s", lineBins.c_str());
- ALOGI("%s", lineBinCounts.c_str());
+}
+#endif
}; //namespace android
diff --git a/Android13/libcameraservice/utils/LatencyHistogram.h b/Android13/libcameraservice/utils/LatencyHistogram.h
index d0dcbf7…9ae7706 100644
— a/Android13/libcameraservice/utils/LatencyHistogram.h
+++ b/Android13/libcameraservice/utils/LatencyHistogram.h
@@ -21,6 +21,9 @@
#include <utils/Timers.h>
#include <utils/Mutex.h>
+#ifdef Deepinout
+#include <math.h>
+#endif
namespace android {
@@ -34,6 +37,10 @@ public:
void dump(int fd, const char* name) const;
void log(const char* format, ...);
+#ifdef Deepinout
- void addFps(float fps);
- void logFps(const char* format, …);
+#endif
private:
int32_t mBinSizeMs;
int32_t mBinCount;
@@ -42,6 +49,9 @@ private:
nsecs_t mTotoalDuration;
nsecs_t mMaxDuration;
nsecs_t mMinDuration; - float mTotalFps;
- float mMaxFps;
float mMinFps;
#endif
uint64_t mTotalCount;
