第29讲 优化Camera LatencyHistogram

Camera课程答疑 Android Camera性能分析
1

本讲是Android Camera性能分析专题的第29讲，我们来优化Camera LatencyHistogram，包括如下内容：

  1. 直方图统计时添加平均值、最大值、最小值、Camera ID
  2. 为Stream直方图添加Size和Name
资源 描述
在线课程 极客笔记在线课程
知识星球 星球名称：深入浅出Android Camera
星球ID: 17296815
Wechat 极客笔记圈

直方图统计时添加平均值、最大值、最小值、Camera ID

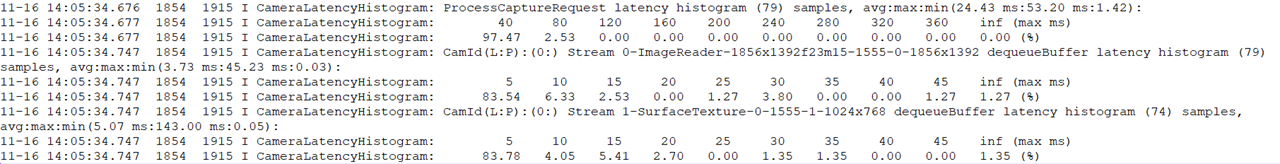

代码见视频讲解，运行结果如下：

直方图统计时添加平均值、最大值、最小值、Camera ID
直方图统计时添加平均值、最大值、最小值、Camera ID1182×162 104 KB

为Stream直方图添加Size和Name

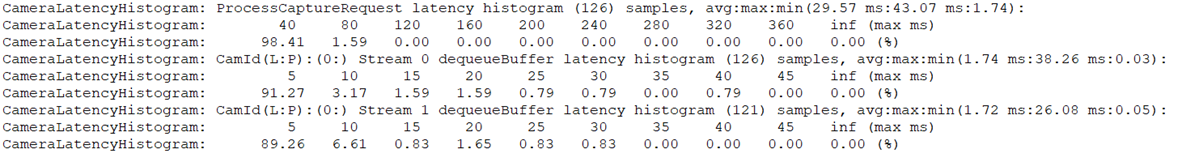

代码见视频讲解，运行结果如下：

为Stream直方图添加Size和Name
为Stream直方图添加Size和Name1280×164 120 KB

代码修改点

diff --git a/services/camera/libcameraservice/Android.bp b/services/camera/libcameraservice/Android.bp
index 981c569..dc02162 100644
--- a/services/camera/libcameraservice/Android.bp
+++ b/services/camera/libcameraservice/Android.bp
@@ -196,6 +196,7 @@ cc_library_shared {
         "-Wextra",
         "-Werror",
         "-Wno-ignored-qualifiers",
+        "-DDeepinout",
     ],

}

diff --git a/services/camera/libcameraservice/api2/CameraDeviceClient.cpp b/services/camera/libcameraservice/api2/CameraDeviceClient.cpp

index 5e91501…554e267 100644

— a/services/camera/libcameraservice/api2/CameraDeviceClient.cpp

+++ b/services/camera/libcameraservice/api2/CameraDeviceClient.cpp

@@ -958,12 +958,14 @@ binder::Status CameraDeviceClient::createStream(

static_cast<camera_stream_rotation_t>(outputConfiguration.getRotation()),

&streamId, physicalCameraId, streamInfo.sensorPixelModesUsed, &surfaceIds,

outputConfiguration.getSurfaceSetID(), isShared, isMultiResolution);

+

if (err == OK) {

Mutex::Autolock l(mCompositeLock);

mCompositeStreamMap.add(IInterface::asBinder(surfaces[0]->getIGraphicBufferProducer()),

compositeStream);

}

} else {

+

err = mDevice->createStream(surfaces, deferredConsumer, streamInfo.width,

streamInfo.height, streamInfo.format, streamInfo.dataSpace,

static_cast<camera_stream_rotation_t>(outputConfiguration.getRotation()),

diff --git a/services/camera/libcameraservice/device3/Camera3Device.cpp b/services/camera/libcameraservice/device3/Camera3Device.cpp

index 7c2f34f…e4361ac 100644

— a/services/camera/libcameraservice/device3/Camera3Device.cpp

+++ b/services/camera/libcameraservice/device3/Camera3Device.cpp

@@ -1139,6 +1139,9 @@ status_t Camera3Device::createStream(const std::vector<sp<Surface>>& consumers,

isMultiResolution, dynamicRangeProfile, streamUseCase, mDeviceTimeBaseIsRealtime,

timestampBase, mirrorMode);

}

+#ifdef Deepinout




  •

       newStream-&gt;mLogicalCameraId = mId;



    •



+#endif


 size_t consumerCount = consumers.size();
 for (size_t i = 0; i &lt; consumerCount; i++) {



diff --git a/services/camera/libcameraservice/device3/Camera3OutputStream.cpp b/services/camera/libcameraservice/device3/Camera3OutputStream.cpp

index 1e20ee0…204947c 100644

— a/services/camera/libcameraservice/device3/Camera3OutputStream.cpp

+++ b/services/camera/libcameraservice/device3/Camera3OutputStream.cpp

@@ -71,6 +71,9 @@ Camera3OutputStream::Camera3OutputStream(int id,

mDropBuffers(false),

mMirrorMode(mirrorMode),

mDequeueBufferLatency(kDequeueLatencyBinSize),

+#ifdef Deepinout




  •

       mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),



    •



+#endif

mIPCTransport(transport) {


 if (mConsumer == NULL) {



@@ -104,6 +107,9 @@ Camera3OutputStream::Camera3OutputStream(int id,

mDropBuffers(false),

mMirrorMode(mirrorMode),

mDequeueBufferLatency(kDequeueLatencyBinSize),

+#ifdef Deepinout




  •

       mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),



    •



+#endif

mIPCTransport(transport) {


 if (format != HAL_PIXEL_FORMAT_BLOB &amp;&amp; format != HAL_PIXEL_FORMAT_RAW_OPAQUE) {



@@ -144,6 +150,9 @@ Camera3OutputStream::Camera3OutputStream(int id,

mDropBuffers(false),

mMirrorMode(mirrorMode),

mDequeueBufferLatency(kDequeueLatencyBinSize),

+#ifdef Deepinout




  •

       mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),



    •



+#endif

mIPCTransport(transport) {

// Deferred consumer only support preview surface format now.

if (format != HAL_PIXEL_FORMAT_IMPLEMENTATION_DEFINED) {

@@ -192,6 +201,9 @@ Camera3OutputStream::Camera3OutputStream(int id, camera_stream_type_t type,

mDropBuffers(false),

mMirrorMode(mirrorMode),

mDequeueBufferLatency(kDequeueLatencyBinSize),

+#ifdef Deepinout




  •

       mQueueBufferIntervalHistogram(kQueueBufferIntervalBinSize),



    •



+#endif

mIPCTransport(transport) {


 bool needsReleaseNotify = setId &gt; CAMERA3_STREAM_SET_ID_INVALID;



@@ -312,6 +324,17 @@ status_t Camera3OutputStream::returnBufferLocked(


 mLastTimestamp = timestamp;
 mFrameCount++;



+#ifdef Deepinout




  •

    nsecs_t currentQueueBufferTime = systemTime(SYSTEM_TIME_MONOTONIC);


    •

  •

    if (mLastQueueBufferTime > 0) {


    •

  •

       mQueueBufferIntervalHistogram.add(mLastQueueBufferTime, currentQueueBufferTime);



    •

  •

       char traceLog[48];



    •

  •

       snprintf(traceLog, sizeof(traceLog), &quot;queueBufferInterval-%d&quot;, mId);



    •

  •

       ATRACE_ASYNC_BEGIN(traceLog, mId);



    •

  •

       ATRACE_ASYNC_END(traceLog, mId);



    •

  •

    }


    •

  •

    mLastQueueBufferTime = currentQueueBufferTime;

+#endif


    return OK;

}

@@ -521,6 +544,10 @@ void Camera3OutputStream::dump(int fd, const Vector<String16> &args) const {


    mDequeueBufferLatency.dump(fd,

"      DequeueBuffer latency histogram:");

+#ifdef Deepinout


    •

  •

    mQueueBufferIntervalHistogram.dump(fd,


    •

  •

       &quot;      QueueBufferInterval histogram:&quot;);



    •



+#endif

}


status_t Camera3OutputStream::setTransform(int transform, bool mayChangeMirror) {

@@ -1015,8 +1042,25 @@ status_t Camera3OutputStream::disconnectLocked() {


 mState = (mState == STATE_IN_RECONFIG) ? STATE_IN_CONFIG
                                        : STATE_CONSTRUCTED;





  •



+#ifndef Deepinout

mDequeueBufferLatency.log("Stream %d dequeueBuffer latency histogram", mId);

+#else




  •

    mDequeueBufferLatency.log("CamId(L:P):(%s:%s) Stream %d-%s-%dx%d dequeueBuffer latency histogram",


    •

  •

    mLogicalCameraId.string(),


    •

  •

    getPhysicalCameraId().string(),


    •

  •

    mId,


    •

  •

    mConsumerName.string(),


    •

  •

    camera_stream::width,


    •

  •

    camera_stream::height);


    •

  •

    mQueueBufferIntervalHistogram.log("CamId(L:P):(%s:%s) Stream %d-%s-%dx%d queueBuffer interval histogram",


    •

  •

    mLogicalCameraId.string(),


    •

  •

    getPhysicalCameraId().string(),


    •

  •

    mId,


    •

  •

    mConsumerName.string(),


    •

  •

    camera_stream::width,


    •

  •

    camera_stream::height);


    •

  •

    mQueueBufferIntervalHistogram.reset();

+#endif

mDequeueBufferLatency.reset();

return OK;

}

diff --git a/services/camera/libcameraservice/device3/Camera3OutputStream.h b/services/camera/libcameraservice/device3/Camera3OutputStream.h

index e8065ce…05831ec 100644

— a/services/camera/libcameraservice/device3/Camera3OutputStream.h

+++ b/services/camera/libcameraservice/device3/Camera3OutputStream.h

@@ -408,6 +408,11 @@ class Camera3OutputStream :


    static const int32_t kDequeueLatencyBinSize = 5; // in ms

CameraLatencyHistogram mDequeueBufferLatency;

+#ifdef Deepinout


    •

  •

    nsecs_t mLastQueueBufferTime = 0;


    •

  •

    static const int32_t kQueueBufferIntervalBinSize = 35; // in ms


    •

  •

    CameraLatencyHistogram mQueueBufferIntervalHistogram;

+#endif

IPCTransport mIPCTransport = IPCTransport::INVALID;


    int mImageDumpMask = 0;

diff --git a/services/camera/libcameraservice/device3/Camera3Stream.h b/services/camera/libcameraservice/device3/Camera3Stream.h

index d429e6c…f7784bd 100644

— a/services/camera/libcameraservice/device3/Camera3Stream.h

+++ b/services/camera/libcameraservice/device3/Camera3Stream.h

@@ -469,6 +469,10 @@ class Camera3Stream :

void fireBufferRequestForFrameNumber(uint64_t frameNumber,

const CameraMetadata& settings) override;


    •



+#ifdef Deepinout




  • String8 mLogicalCameraId;

+#endif
    •

  • protected:

const int mId;

/**

diff --git a/services/camera/libcameraservice/utils/LatencyHistogram.cpp b/services/camera/libcameraservice/utils/LatencyHistogram.cpp

index e2bdc43…a48ada7 100644

— a/services/camera/libcameraservice/utils/LatencyHistogram.cpp

+++ b/services/camera/libcameraservice/utils/LatencyHistogram.cpp

@@ -27,7 +27,14 @@ CameraLatencyHistogram::CameraLatencyHistogram(int32_t binSizeMs, int32_t binCou

mBinSizeMs(binSizeMs),

mBinCount(binCount),

mBins(binCount),

+#ifndef Deepinout

mTotalCount(0) {

+#else
    •

  •

       mTotoalDuration(0),



    •

  •

       mMaxDuration(0),



    •

  •

       mMinDuration(0),



    •

  •

       mTotalCount(0) {



    •



+#endif

}


void CameraLatencyHistogram::add(nsecs_t start, nsecs_t end) {

@@ -43,6 +50,15 @@ void CameraLatencyHistogram::add(nsecs_t start, nsecs_t end) {


 mBins[binIndex]++;
 mTotalCount++;



+#ifdef Deepinout




  • mTotoalDuration += duration;
    •

  • if (mMaxDuration == 0 || mMaxDuration < duration) {
    •

  •

       mMaxDuration = duration;



    •

  • }
    •

  • if (mMinDuration ==0 || mMinDuration > duration) {
    •

  •

       mMinDuration = duration;



    •

  • }

+#endif

}
    •



void CameraLatencyHistogram::reset() {

@@ -56,7 +72,16 @@ void CameraLatencyHistogram::dump(int fd, const char* name) const {

}


 String8 lines;



+#ifndef Deepinout

lines.appendFormat("%s (%" PRId64 ") samples\n", name, mTotalCount);

+#else




  • lines.appendFormat("%s (%" PRId64 ") samples , avg:max:min(%.2f ms:%.2f ms:%.2f):\n",
    •

  •

       name,



    •

  •

       mTotalCount,



    •

  •

       (float)(mTotoalDuration / 1e6) / mTotalCount,



    •

  •

       (float)(mMaxDuration / 1e6),



    •

  •

       (float)(mMinDuration / 1e6));



    •



+#endif


 String8 lineBins, lineBinCounts;
 formatHistogramText(lineBins, lineBinCounts);



@@ -77,7 +102,16 @@ void CameraLatencyHistogram::log(const char* fmt, …) {

va_list args;

va_start(args, fmt);

String8 histogramName = String8::formatV(fmt, args);

+#ifndef Deepinout

ALOGI("%s (%" PRId64 ") samples:", histogramName.string(), mTotalCount);

+#else




  •

    ALOGI("%s (%" PRId64 ") samples, avg:max:min(%.2f ms:%.2f ms:%.2f):",


    •

  •

    histogramName.string(),


    •

  •

    mTotalCount,


    •

  •

    (float)(mTotoalDuration / 1e6) / mTotalCount,


    •

  •

    (float)(mMaxDuration / 1e6),


    •

  •

    (float)(mMinDuration / 1e6));

+#endif

va_end(args);


    String8 lineBins, lineBinCounts;

diff --git a/services/camera/libcameraservice/utils/LatencyHistogram.h b/services/camera/libcameraservice/utils/LatencyHistogram.h

index bfd9b1b…d0dcbf7 100644

— a/services/camera/libcameraservice/utils/LatencyHistogram.h

+++ b/services/camera/libcameraservice/utils/LatencyHistogram.h

@@ -38,6 +38,11 @@ private:

int32_t mBinSizeMs;

int32_t mBinCount;

std::vector<int64_t> mBins;

+#ifdef Deepinout


    •

  •

    nsecs_t mTotoalDuration;


    •

  •

    nsecs_t mMaxDuration;


    •

  •

    nsecs_t mMinDuration;

+#endif

uint64_t mTotalCount;


    void formatHistogramText(String8& lineBins, String8& lineBinCounts) const;
