第28讲 Buffer Limit Latency

Camera课程答疑 Android Camera性能分析
1

本讲是Android Camera性能分析专题的第28讲，我们介绍CameraServer Buffer Limit Latency，包括如下内容：

  1. Buffer Limit Latency是什么
  2. Buffer Limit Latency配置
  3. Buffer Limit Latency实战
资源 描述
在线课程 极客笔记在线课程
知识星球 星球名称：深入浅出Android Camera
星球ID: 17296815
Wechat 极客笔记圈

Buffer Limit Latency是什么

Buffer Limit Latency用于衡量当某路Stream dequeue buffer数量达到producer的最大值后，等待HAL处理的耗时。

什么是numOutstandingBuffers

  • 已经送给HAL，HAL正在处理，未返回的Buffer数量

  • 视频讲解演示如何查看每路stream的numOutstandingBuffers

什么是camera_stream::max_buffers

  • Camera HAL配置的，在未返回buffer的情况下，最多dequeueBuffer的数量

  • 视频讲解演示如何查看每路stream HAL配置的最大max_buffers

Buffer Limit Latency配置

Buffer Limit Latency直方图配置

  • 分成10份（默认值）， 间隔为33ms

    • static const int32_t kBufferLimitLatencyBinSize = 33; //in ms

    • Latency histogram of the wait time for handout buffer count to drop below max_buffers.

添加Sample的时机

  • 当numOutstandingBuffers等于camera_stream::max_buffers时，会等待新的Buffer返回，该Latency衡量的是这个等待时间

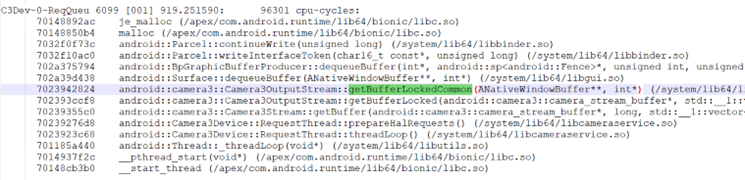

Buffer Limit Latency配置

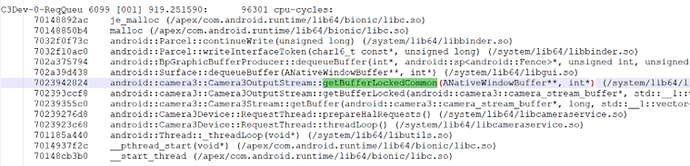

Buffer Limit Latency配置745×180 130 KB

Buffer Limit Latency实战

// Wait for new buffer returned back if we are running into the limit.
size_t numOutstandingBuffers = getHandoutOutputBufferCountLocked();
if (numOutstandingBuffers == camera_stream::max_buffers) {
    ALOGV("%s: Already dequeued max output buffers (%d), wait for next returned one.",
                    __FUNCTION__, camera_stream::max_buffers);
    nsecs_t waitStart = systemTime(SYSTEM_TIME_MONOTONIC);
    if (waitBufferTimeout < kWaitForBufferDuration) {
        waitBufferTimeout = kWaitForBufferDuration;
    }
    res = mOutputBufferReturnedSignal.waitRelative(mLock, waitBufferTimeout);
    nsecs_t waitEnd = systemTime(SYSTEM_TIME_MONOTONIC);
    mBufferLimitLatency.add(waitStart, waitEnd);
    if (res != OK) {
        if (res == TIMED_OUT) {
            ALOGE("%s: wait for output buffer return timed out after %lldms (max_buffers %d)",
                    __FUNCTION__, waitBufferTimeout / 1000000LL,
                    camera_stream::max_buffers);
        }
        return res;
    }

size_t updatedNumOutstandingBuffers = getHandoutOutputBufferCountLocked();
if (updatedNumOutstandingBuffers &gt;= numOutstandingBuffers) {
    ALOGE(&quot;%s: outsanding buffer count goes from %zu to %zu, &quot;
            &quot;getBuffer(s) call must not run in parallel!&quot;, __FUNCTION__,
            numOutstandingBuffers, updatedNumOutstandingBuffers);
    return INVALID_OPERATION;
}



}
