本讲是 Camera Sensor驱动 专题的第15讲，我们介绍Camera Sensor点亮之 KMD DTS 配置。
更多资源：
| 资源 | 描述 |
|---|---|
| 在线课程 | 极客笔记在线课程 |
| 知识星球 | 星球名称：深入浅出Android Camera 星球ID: 17296815 |
| 极客笔记圈 |
什么是DTS
DTS是一种用于描述硬件信息的数据结构和语言，它是树状结构的。
-
bengal-camera-sensor-qrd.dtsi
- camera模组相关硬件描述(sensor,eeprom,actuator,flash,etc)
-
bengal-camera.dtsi
- 平台相关camera硬件描述(ife,ipe,csiphy,csid,cci,etc)
soc 节点（flash，cam-res-mgr）
bengal-camera-sensor-qrd.dtsi //类似于C语言的头文件
&soc {
led_flash_rear: qcom,camera-flash@0 {
cell-index = <0>; //唯一标号
compatible = "qcom,camera-flash"; //和driver匹配，匹配后调驱动probe
flash-source = <&pmi632_flash0 &pmi632_flash1>; //引用flash节点，由BSP实现
torch-source = <&pmi632_torch0 &pmi632_torch1>;//引用torch节点，由BSP实现
switch-source = <&pmi632_switch0 &pmi632_switch1>; //引用switch节点
status = "ok"; //ok or disable
};
,,,
qcom,cam-res-mgr { //管理GPIO资源，封装kernel API 接口
compatible = "qcom,cam-res-mgr"; //和driver匹配，probe
status = "ok"; //ok or disable
};
};
cam_cci 节点
actuator
&cam_cci0 { //平台cci0 控制器
actuator_rear: qcom,actuator0 {
cell-index = <0>; //唯一标号
compatible = "qcom,actuator"; //和driver匹配，匹配后调驱动probe
cci-master = <0>; //cci index
cam_vaf-supply = <&L5P>; //电源引用节点，由BSP实现
regulator-names = "cam_vaf"; //电源名称
rgltr-cntrl-support; //regulator 精确控制使能
rgltr-min-voltage = <2800000>; //最小电压值，单位µV
rgltr-max-voltage = <2800000>; //最大电压值，单位µV
rgltr-load-current = <100000>; //电流，单位µA
status = "ok";
};
actuator_rear_aux: qcom,actuator1 {
cell-index = <1>;
compatible = "qcom,actuator";
cci-master = <1>;
cam_vaf-supply = <&L5P>;
regulator-names = "cam_vaf";
rgltr-cntrl-support;
rgltr-min-voltage = <2800000>;
rgltr-max-voltage = <2800000>;
rgltr-load-current = <100000>;
status = "ok";
};

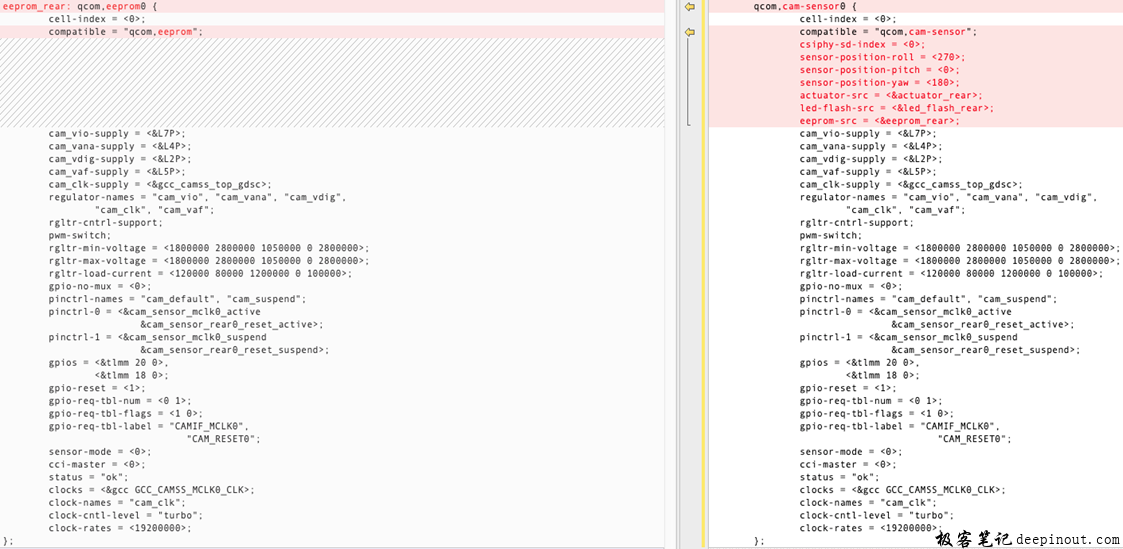

sensor
qcom,cam-sensor0 {
cell-index = <0>; //唯一标号，slot id 和 module xml id唯一匹配
compatible = "qcom,cam-sensor"; //和driver匹配，匹配后调驱动probe
csiphy-sd-index = <0>; //csiphy id, 绑定csiphy
sensor-position-roll = <270>; //会被xml配置覆盖
sensor-position-pitch = <0>;
sensor-position-yaw = <180>;
actuator-src = <&actuator_rear>; //绑定actuator节点
led-flash-src = <&led_flash_rear>; //绑定flash节点
eeprom-src = <&eeprom_rear>; //绑定eeprom节点
cam_vio-supply = <&L7P>; //引用IOvdd 节点，由BSP具体实现
cam_vana-supply = <&L4P>; //引用Avdd 节点，由BSP具体实现
cam_vdig-supply = <&L2P>; //引用Dvdd 节点，由BSP具体实现
cam_vaf-supply = <&L5P>; //引用AFvdd 节点，由BSP具体实现
cam_clk-supply = <&gcc_camss_top_gdsc>; //引用gdsc 时钟，由BSP实现
regulator-names = "cam_vio", "cam_vana", "cam_vdig",
"cam_clk", "cam_vaf";
rgltr-cntrl-support; //regulator 精确控制使能
rgltr-min-voltage = <1800000 2800000 1050000 0 2800000>;
rgltr-max-voltage = <1800000 2800000 1050000 0 2800000>;
rgltr-load-current = <120000 80000 1200000 0 100000>;
gpio-no-mux = <0>;
pinctrl-names = "cam_default", "cam_suspend"; //active, deactive
pinctrl-0 = <&cam_sensor_mclk0_active
&cam_sensor_rear0_reset_active>; //active
pinctrl-1 = <&cam_sensor_mclk0_suspend
&cam_sensor_rear0_reset_suspend>; //deactive
gpios = <&tlmm 20 0>, // GPIO No.
<&tlmm 18 0>; //GPIO No.
gpio-reset = <1>; //指定上面哪一个作为GPIO RESET使用
gpio-req-tbl-num = <0 1>; // GPIO 数组index
gpio-req-tbl-flags = <1 0>; //GPIO direction, 0:输出，1:输入
gpio-req-tbl-label = "CAMIF_MCLK0",
"CAM_RESET0";
cci-master = <0>; //cci总线
status = "ok";
clocks = <&gcc GCC_CAMSS_MCLK0_CLK>; //引用MCLK节点，由BSP提供具体实现
clock-names = "cam_clk"; //MCLK时钟名称
clock-cntl-level = "turbo";
clock-rates = <19200000>; //MCLK时钟频率，19.2M or 24M
};
